Carrier Auxiliary Board

Carrier Auxiliary Board Specification

Application
Carrier Industrial Chiller

Material
Other

Condition
New

Type
Auxiliary Board

Dimension (L*W*H)
Approx. 170 mm x 85 mm x 20 mm

Power Supply
Typically 24V DC (Verify per Model Spec)

Voltage
24V DC Nominal

Cooling Type
Electronic, No Direct Cooling

Noise Control
Silent Operation (No Moving Parts)

Compressor
Screw

Board Model
Carrier CEPL13048B-01

Marking
Carrier Logo and Barcode

PCB Thickness
Approx. 1.6 mm

Part Number on Board
320B 500 312 EE

Connector Types
Multiple Pin Connectors, Screw Terminals

PCB Color
Green

Protection Features
Conformal Coating for Moisture and Dust Resistance

Compatibility
Compatible with Select Carrier HVAC Control Systems

Operating Temperature Range
Typically 0C to +60C (Check Manual)

Component Rating
Standard Carrier Components

Mounting
Screw Mount (4 Corners)

Main Usage
Expansion and Auxiliary Functions for Carrier HVAC Equipment

Carrier Auxiliary Board Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Carrier Auxiliary Board About

Carrier Fan Auxiliary Control Board primarily used in HVAC systems like the 30GX/30HX series chillers to manage fan operations and auxiliary safety functions.

Fan Management: It controls various fan speeds and modes to ensure efficient airflow within the refrigeration unit.
System Integration: It interfaces with the main logic board to regulate temperature and maintain system comfort levels.
Diagnostics: Supports built-in diagnostic functions to assist technicians in troubleshooting fan-related issues.
Safety Interlocks: Manages safety functions such as interlocks and protection protocols to prevent equipment damage

Reliable Expansion for Carrier HVAC Systems

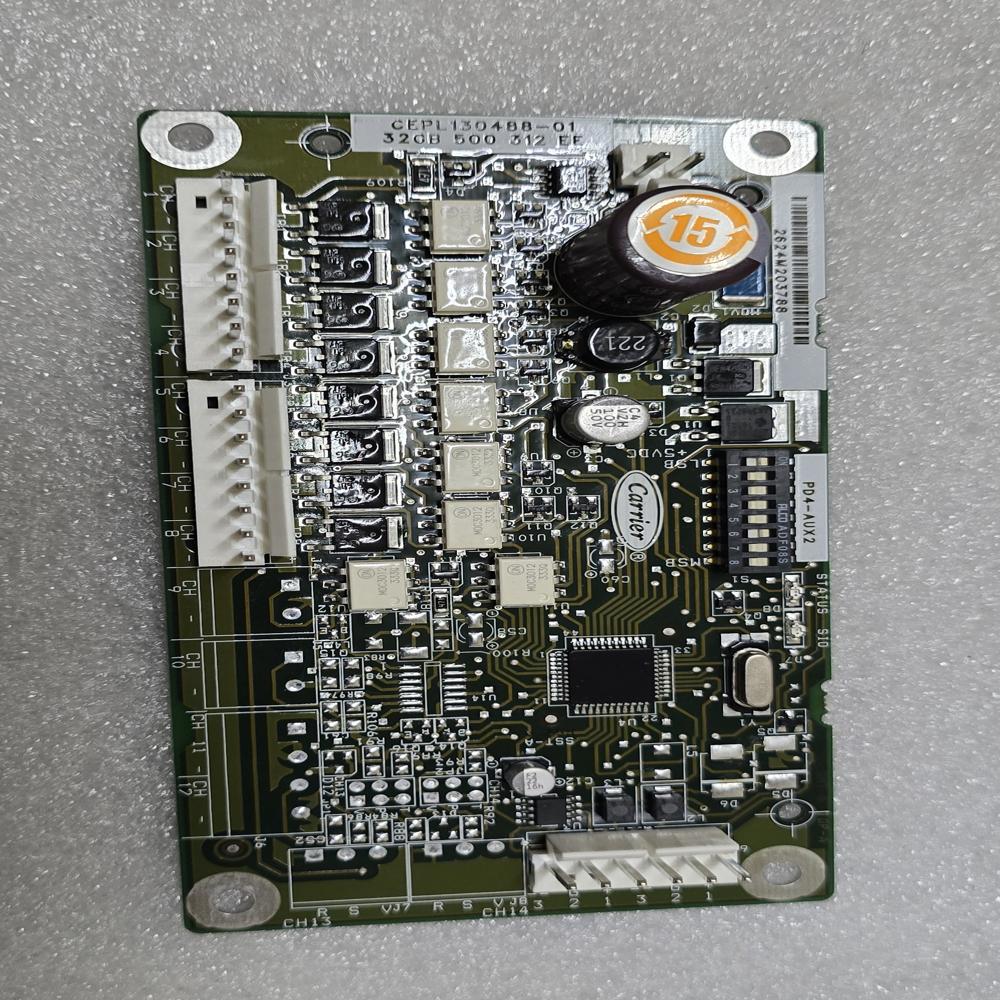

The Carrier CEPL13048B-01 Auxiliary Board enhances your HVAC system's functionality by offering expanded connectivity and control. Built to Carrier's high standards, this board ensures seamless integration with select Carrier chillers, providing auxiliary features necessary for complex operations. Its robust construction and precision marking facilitate straightforward installation and long-term reliability.

Durable Construction & Easy Mounting

Designed with a PCB thickness of approximately 1.6 mm and protected by a conformal coating, this auxiliary board resists dust and moisture, extending operational life. Screw mounting through four corners ensures stable and vibration-resistant attachment. The board's green PCB and clear Carrier logo and barcode enhance identification and traceability.

Optimized for Industrial Chiller Applications

Purpose-built for use with Carrier industrial chillers using screw compressors, this auxiliary board manages expansion and additional control requirements effortlessly. Silent operation, thanks to electronics-only cooling, eliminates noise concerns while maintaining high performance and reliability even in heavy-duty environments.

FAQ's of Carrier Auxiliary Board:

Q: How is the Carrier CEPL13048B-01 Auxiliary Board installed and mounted?

A: The board features four screw mount holes at the corners, allowing simple and secure installation onto compatible Carrier HVAC equipment. Always follow the installation instructions in the product manual to ensure correct mounting and connection.

Q: What are the main benefits of using this auxiliary board in Carrier HVAC systems?

A: Utilizing the CEPL13048B-01 Auxiliary Board expands system control, enhances auxiliary functions, and ensures reliable operation under varying environmental conditions, thanks to its conformal coating and robust design.

Q: When should I consider installing this auxiliary board in my HVAC setup?

A: Install this board when you need to add expansion or auxiliary control functions to Carrier industrial chillers, especially when upgrading or customizing existing systems for additional capabilities.

Q: Where is this board typically used within HVAC equipment?

A: This auxiliary board is typically installed within Carrier industrial HVAC units, such as chillers with screw compressors, to provide extra connectivity and expansion functions required by complex control systems.

Q: What process should I follow for connecting power to the board?

A: Connect the power supply to the board's designated terminals, ensuring that the input voltage is 24V DC nominal as recommended. Always verify wiring against the model-specific documentation before powering up.

Q: What protection features are included in the CEPL13048B-01 Auxiliary Board?

A: The board is equipped with a conformal coating that safeguards its circuits against moisture and dust, ensuring reliable operation in challenging industrial environments.

Q: Is the Carrier CEPL13048B-01 board compatible with all Carrier HVAC control systems?

A: This auxiliary board is compatible with select Carrier HVAC control systems. Verify compatibility by referencing the product manual or consulting with your system supplier before installation.
