Carrier Control Panel

Name: Carrier Control Panel
Brand: Ozone Air Solution Limited
Price: 13000.0 INR
Availability: InStock

Carrier Control Panel Specification

Material
Other

Refrigerating Capacity
System dependent, controlled via panel

Motor
Microprocessor-based operation

Air Flow
Controlled via integrated system

Application
HVAC System

Condition
New

Type
Electronic Control Panel

Dimension (L*W*H)
Approx. 200mm x 120mm x 60mm

Power Supply
24V AC / DC (model dependent)

Voltage
24V (consult system/spec)

Cooling Type
Air or Water cooled system compatible

Water Flowing Rate
Regulated through panel control

Water Pump Motor
Integratable with panel logic

Noise Control
Integrated alarm and monitoring for system error

Compressor
water-cooled screw chillers

Communication
Supports MODBUS protocol (optional/variant dependent)

Control System
Carrier PRO-DIALOG Plus microprocessor

Color
Grey/White front panel with Carrier Logo

Protection Class
IP54 (front side)

Operating Temperature
0C - 55C

Weight
Approx. 700g

Compatibility
Carrier chiller systems and selected HVAC units

Display
LED indicator lights, graphical function layout

Safety Features
Lockout, password-protect, visual error indication

User Interface
Membrane keypad with LED indicators and LCD segment display

Mounting Type
Panel / Flush mount

Functions
Alarms, fault diagnostics, compressor and pump control, temperature reading, system status monitoring

Carrier Control Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About Carrier Control Panel

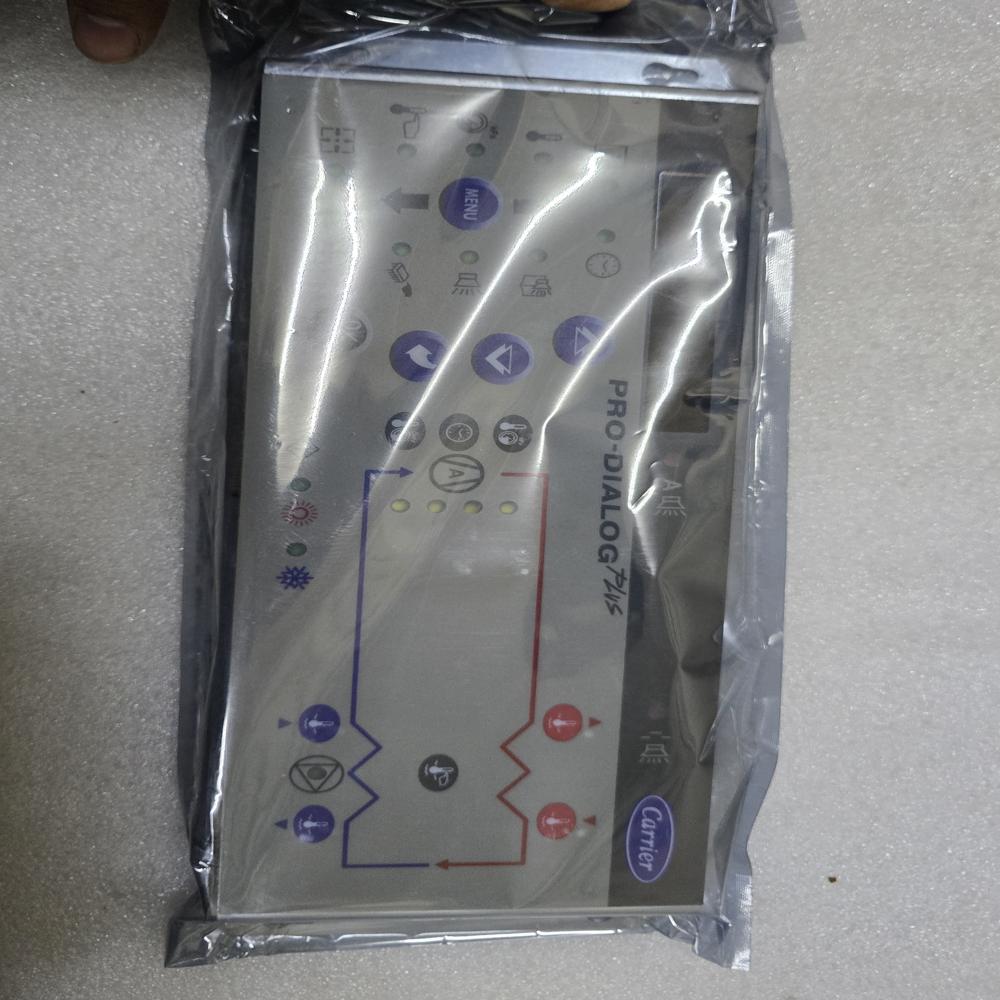

Pro-Dialog Plus display control panel specifically designed for Carrier 30HXY and 30HXC series water-cooled screw chillers. It serves as the primary human-machine interface (HMI) for managing refrigeration operations, temperature settings, and system diagnostics

Advanced User Interface and Display

Enjoy a user-friendly experience with the membrane keypad, graphical function layout, and clear LCD segment display. LED indicators provide at-a-glance operational status and system alerts, making monitoring and control accessible and efficient for operators in demanding HVAC environments.

Reliable and Intelligent Control

Powered by the Carrier PRO-DIALOG Plus microprocessor, this panel delivers advanced control over compressors, pumps, temperature readings, and system diagnostics. Integrated alarm and lockout safety features ensure operational security and rapid response to system issues, enhancing equipment longevity.

Flexible Mounting and System Integration

Suitable for panel or flush mounting, this control panel adapts seamlessly to Carrier chillers and selected HVAC systems. MODBUS support (model-dependent) offers enhanced communication possibilities, while the 24V AC/DC power input (per model) ensures compatibility with diverse electrical setups.

FAQ's of Carrier Control Panel:

Q: How do I install the Carrier Control Panel onto my chiller or HVAC system?

A: The control panel is designed for panel or flush mounting. Ensure your mounting location provides easy access to controls and visibility of indicators. Secure the panel according to the manufacturer's guidelines, connect the 24V AC/DC power supply, and follow system integration instructions specific to your Carrier equipment.

Q: What are the main benefits of using the Carrier PRO-DIALOG Plus microprocessor in this panel?

A: The PRO-DIALOG Plus microprocessor enables precise control, real-time monitoring, advanced fault diagnostics, and integrated safety functions. This results in improved equipment performance, quicker troubleshooting, and enhanced operational efficiency for HVAC professionals.

Q: When should I utilize the panel's fault diagnostics and alarm features?

A: Fault diagnostics and alarm functions should be used whenever the system indicates irregular performance, error codes, or alarms via LED indicators. The panel's visual alerts and LCD messages help in quickly identifying and addressing any issues to maintain optimal system function.

Q: Where is this control panel compatible for use?

A: This control panel is compatible with Carrier water-cooled screw chillers and selected HVAC units. Its robust IP54-rated front side protection makes it suitable for installation in mechanical and equipment rooms within commercial and industrial environments.

Q: What process should I follow for integrating MODBUS communication with the panel?

A: If your panel supports MODBUS (variant-dependent), refer to the product documentation for wiring and protocol setup. Integrate the panel with building management or automation systems through the MODBUS interface, ensuring all communication parameters match your network requirements.

Q: How does the panel contribute to system security and safety?

A: The panel offers lockout capabilities, password-protect features, and visual error indication, minimizing unauthorized access and enabling prompt detection of operating faults. This comprehensive safety approach helps protect both the equipment and users.

Q: What is the operating temperature range for this Carrier Control Panel?

A: The control panel operates reliably within a temperature range of 0C to 55C, making it suitable for a wide variety of indoor mechanical or utility room environments.
