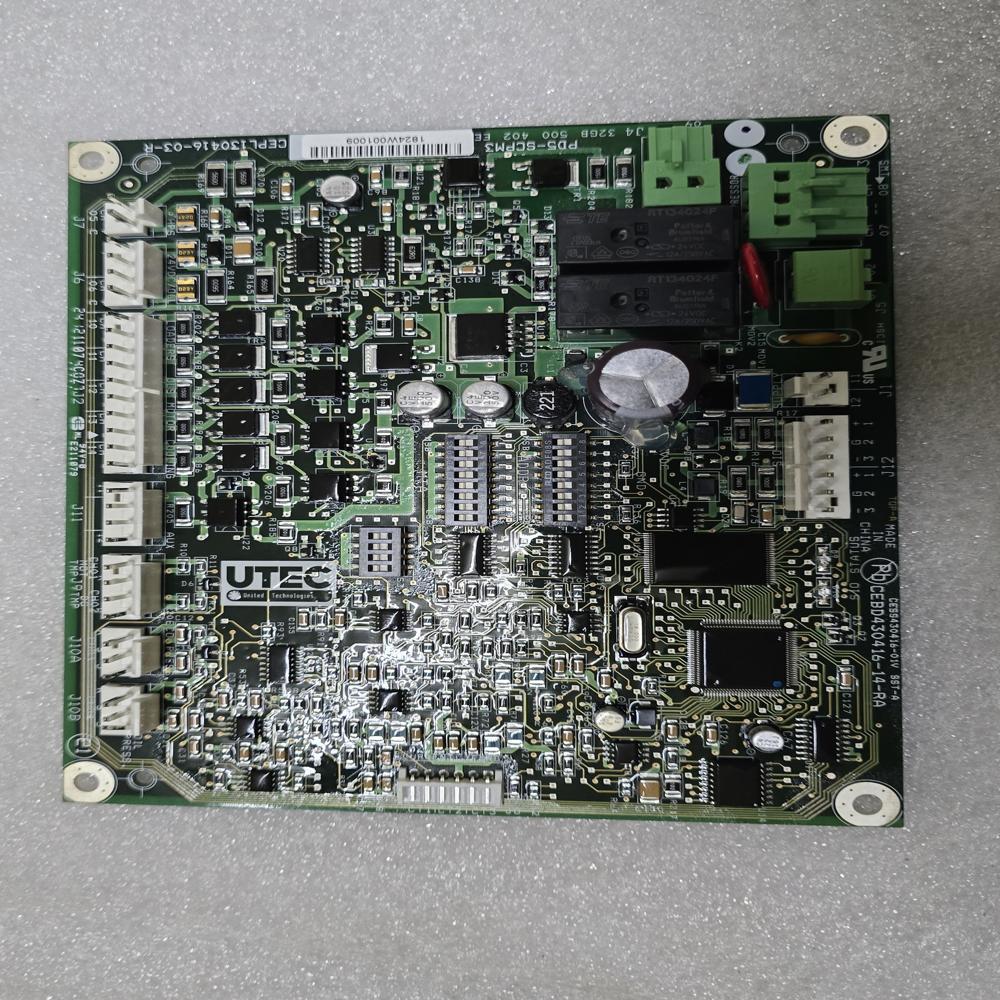

Carrier SCPM Board

Carrier SCPM Board Specification

Application
HVAC systems

Material
Other

Condition
New

Type
Carrier SCPM Board

Dimension (L*W*H)
Approx. 16cm x 16cm x 2cm

Power Supply
24V AC/DC (typically dependent on unit requirements)

Voltage
Low Voltage (per system requirement, usually 24V)

Noise Control
Electronic (no moving parts; silent)

Compressor
Screw

PCB Layers
Multi-layered PCB

Mounting Type
Panel Mount (screw holes at corners)

Main Features
Reliable microcontroller, integrated relays, and capacitors for HVAC control

Circuit Protection
Integrated Fuses/Relays

Product Code
PPD-SCPM5 / EBD330X16-15 4PA

Weight
Approx. 230 grams

Connectivity
Multiple terminal blocks for system interfacing

Display
No direct display, interface connectors provided

Operating Temperature Range
-20C to +70C (typical for controller boards)

Use
Carrier Chiller System Control, Spare/Replacement part

Carrier SCPM Board Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Carrier SCPM Board

Screw Compressor Protection Module (SCPM) board manufactured by Carrier, specifically designed for use in their industrial chiller series like the 30HXC and 30HXY. This board is a critical safety component that monitors compressor operation to prevent damage and ensure system longevity

Application: Designed for 30HXC and 30HXY screw chiller units.
Function: Provides compressor protection, specifically for screw-type compressors in high-capacity HVAC systems.
Construction: High-grade PCB material in a compact design to facilitate easy installation.

Purpose-Built Control for HVAC Systems

Specially designed for Carrier chiller systems, the SCPM Board streamlines complicated HVAC control processes. Its multi-terminal block design enables hassle-free interfacing with a wide range of system components, providing optimal reliability and control for commercial and industrial environments where precision is paramount.

Advanced Circuit Protection and Durability

Equipped with integrated fuses and relays, the board ensures safety and longevity even in demanding operating conditions. The multi-layered PCB construction supports higher performance and durability, making it suitable for continuous operation within the recommended temperature range, from -20C to +70C.

FAQ's of Carrier SCPM Board:

Q: How do I install the Carrier SCPM Board in my chiller system?

A: The Carrier SCPM Board is designed for panel mounting and features screw holes at its corners for secure attachment. To install, ensure all power is disconnected, align the board with the mounting area, and secure it using appropriate screws. Afterwards, connect the terminal blocks according to your system's wiring diagram.

Q: What are the primary benefits of using this SCPM Board as a replacement part?

A: This SCPM Board offers reliable microcontroller-based control, integrated relays for robust operation, and electronic noise control. Its multi-layer PCB and inbuilt protection ensure long-term durability and safety, lowering the risk of unexpected outages and reducing maintenance frequency.

Q: When should I consider replacing my existing Carrier SCPM Board?

A: Consider replacement if your current board has suffered electrical faults, is not communicating with system components correctly, or if relays or fuses are irreparably damaged. Noticeable control malfunction or HVAC system errors are also indicators for replacement.

Q: What is the process for connecting the Carrier SCPM Board to my HVAC system?

A: First, mount the board securely to the panel. Next, use the provided terminal blocks for system wiring, following your Carrier chiller's electrical schematic for proper connections. No direct display is provided, but interface connectors allow seamless integration with other control modules.

Q: Where is this SCPM Board best suited for use?

A: This board is ideal for Carrier chiller systems used in commercial and industrial HVAC settings. It is compatible with screw compressor applications and is tailored for installations that demand silent and reliable electronic control.

Q: What power supply does the SCPM Board require?

A: The board operates on a low voltage supply, typically 24V AC or DC, as determined by your system's requirements. Always verify your specific Carrier unit's documentation for exact power needs before installation.

Q: How does the Carrier SCPM Board ensure system safety and reliability?

A: It features integrated fuses and relays for circuit protection, minimizing damage risks from surges or faults. Its robust construction and reliable components enhance the safety and long-term dependability of the HVAC control system.
